Описание

• Moщнocт: 2 х 1 000 W на 2 Ω; 2 x 7500 W на 4 Ω; 2000 W в 4 Ω (мостов режим)
• Изкривяване: <0.01%
• Честотна характеристика: 20Hz - 20kHz
• Gain Control (Channel 1 and 2)
• Мощност: Зелен светодиод
• Клип: Червен светодиод, 1 на канал
• Сигнал: Жълт светодиод, 1 на канал


Full Description

Ease-of-Use

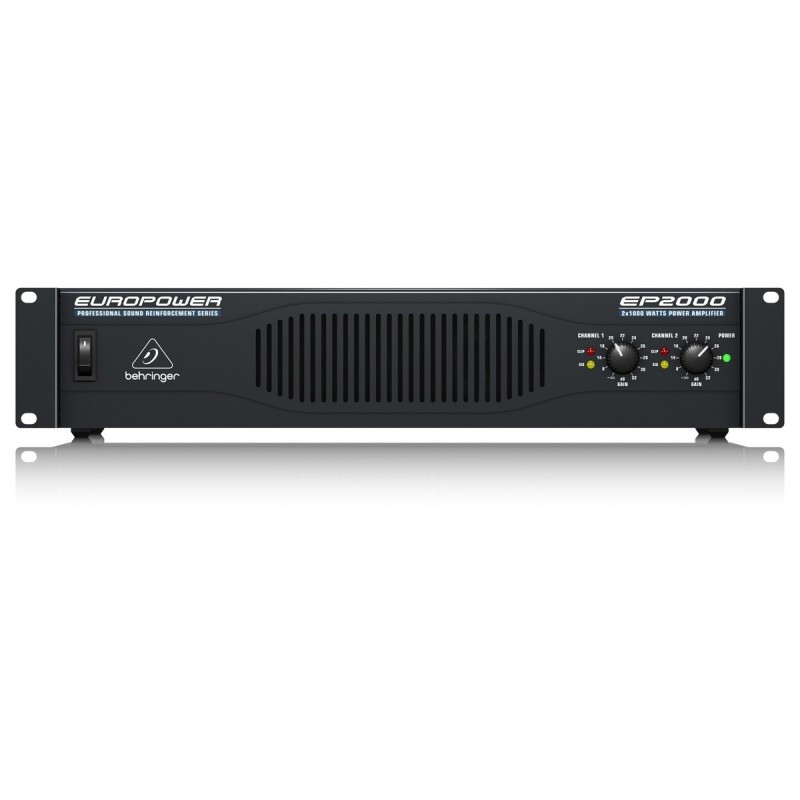

The intuitive front panel controls of the EP2000 provide you with the ability to quickly view all of the vital signs at-a-glance. The two channels feature dedicated Gain controls and Signal LEDs, each of which light up when a signal is present at the input. Additionally, the Clip LEDs instantly indicate when the input signal needs to be adjusted to ensure optimal sound quality.

Features

• 2 x 1000 watts into 2Ω, 2 x 750 watts into 4Ω or 2000 watts into 4Ω (bridge mode)
• ATR (Accelerated Transient Response) technology for ultimate punch and clarity
• Switchable limiters offer maximum output level with reliable overload protection
• Detented gain controls for precise setting and matching of sensitivity
• Precise Power, Signal and Clip LEDs to monitor performance
• XLR and 1/4" TRS input connectors for compatibility with any source
• Professional speaker connectors and ''touch-proof'' binding posts support most speaker wiring systems
• Selectable low-frequency filters remove damaging infra-sound frequencies
• Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
• High-current toroidal transformer for ultra-high transient response and absolute reliability
• ''Back-to-front'' ventilation system including air filter for reliable operation
• ''Built-like-a-tank,'' impact-resistant, all-steel 2U rackmount chassis
• Designed and engineered in Germany

Specifications

• Distortion: < 0.01%
• Frequency Response: 20Hz - 20kHz
• Damping Factor: > 300 @ 8Ω
• Input Sensitivity: 1.15V, +3.4dBu (V RMS @ 8Ω)
• Input Impedance: 10kΩ Unbalanced/20kΩ Balanced
• Front Controls:
  • Power Switch
  • Gain Control (Channel 1 and 2)
• Rear Controls: DIP Switches (10x)
• Indicators:
  • Power: Green LED
  • Clip: Red LED, 1 Per Channel
  • Signal: Yellow LED, 1 Per Channel

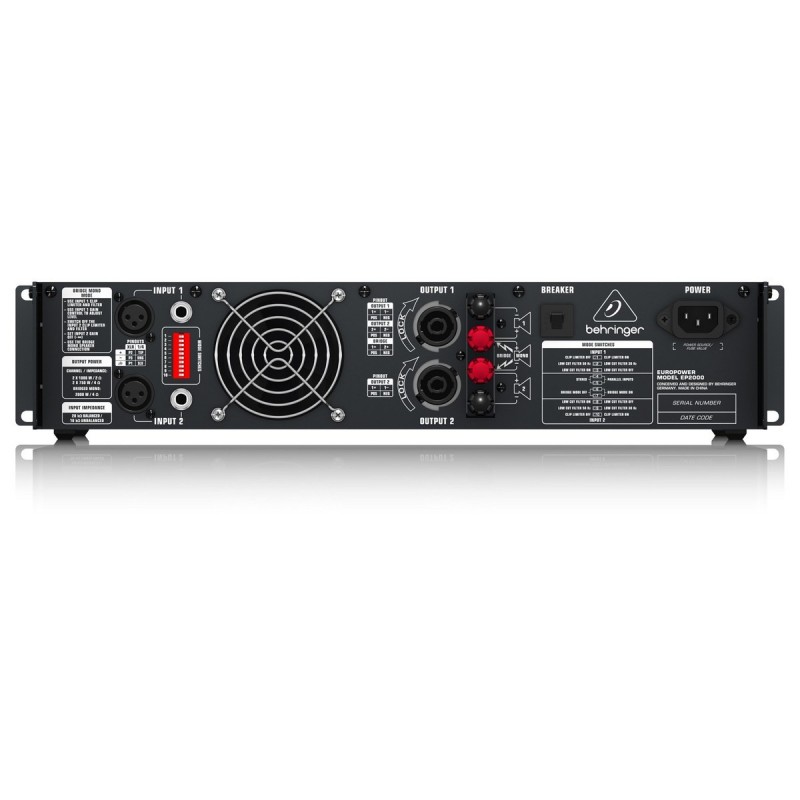

• Input Connectors:
  • XLR
  • 1/4'' TRS
• Output Connectors:
  • Touch-Proof Binding Posts
  • Professional Speakon
• Cooling: Continuously Variable Speed Fan, Back-to-Front Air Flow
• Output Circuit Type: Class-A/B Complementary Linear Output
• Power Consumption: 1600W
• Mains Connector: Standard IEC
• Dimensions: 3.5'' x 19'' x 15.8'' / 88mm x 483mm x 402mm (H x W x D)
• Weight: 34.6lbs / 15.7kg

Output Power

• RMS @ 1% THD, Both Channels Driven:
  • 8Ω Per Channel: 350W
  • 4Ω Per Channel: 500W
  • 2Ω Per Channel: 650W
• RMS @ 1% THD, Bridged Mode:
  • 8Ω: 1000W
  • 4Ω: 1300W
• Peak Power, Both Channels Driven:
  • 8Ω Per Channel: 750W
  • 4Ω Per Channel: 1400W
  • 2Ω Per Channel: 2000W
• Peak Power, Bridged Mode:
  • 8Ω: 1500W
  • 4Ω: 2000W
