Описание

• Moщнocт: 2 х 2 000 W на 2 Ω; 2 x 1400 W на 4 Ω; 4000 W в 4 Ω (мостов режим)
• Изкривяване: <0.02%
• Честотна характеристика: 20Hz - 20kHz, 0dB / -1dB
• Мощност: Зелен светодиод
• Входни конектори: XLR, 1/4 '' TRS
• Изходни конектори: Binding Post, SpeakON

Full Description

Features

• 2 x 2,000 watts into 2 ohms; 2 x 1,400 watts into 4 ohms; 4,000 watts into 4 ohms (bridge mode)
• ATR (Accelerated Transient Response) technology for ultimate punch and clarity
• Switchable limiters offer maximum output level with reliable overload protection
• Detented gain controls for precise setting and matching of sensitivity
• Precise Power, Signal and Clip LEDs to monitor performance
• XLR and 1/4" TRS input connectors for compatibility with any source
• Professional speaker connectors and "touch-proof" binding posts support most speaker wiring systems
• Selectable low-frequency filters remove damaging infra-sound frequencies
• Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
• High-current toroidal transformer for ultra-high transient response and absolute reliability
• "Back-to-front" ventilation system including air filter for reliable operation
• "Built-like-a-tank," impact-resistant, all-steel 2U rackmount chassis

Specifications

• Distortion: < 0.02%
• Frequency Response: 20Hz - 20kHz, 0dB/-1dB
• Damping Factor: > 300 @ 8 Ohms
• Input Sensitivity: 1.23V (+3.4dBu)
• Input Impedance: 10k Ohms Unbalanced/20k Ohms Balanced

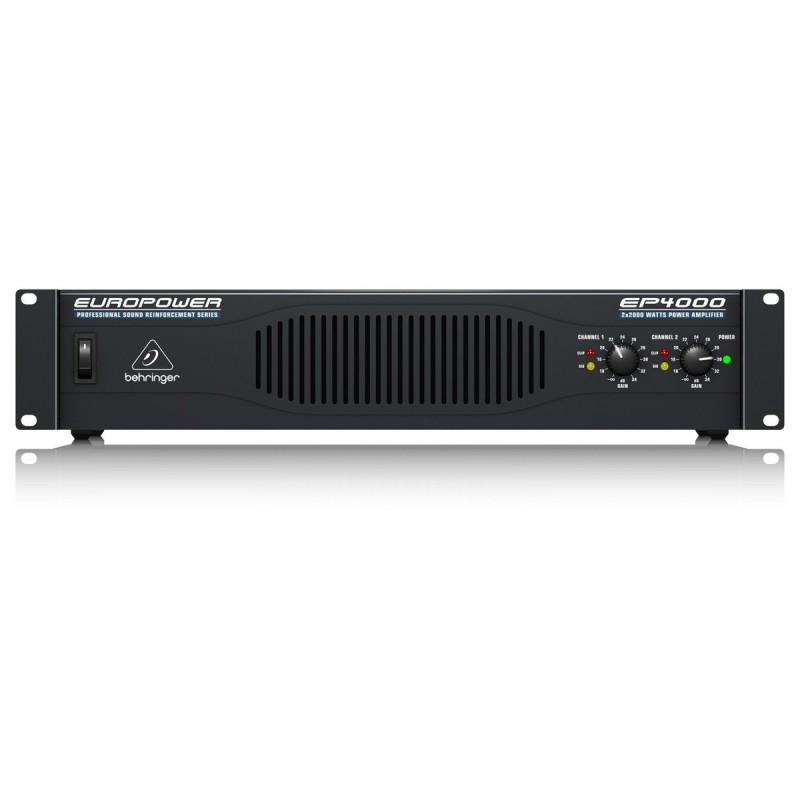

• Front Controls:
  • Power Switch
  • Gain (Channels 1 and 2)
• Rear Controls: DIP Switches (10x)
• Indicators:
  • Power: Green LED
  • Clip: Red LED, 1 Per Channel
  • Signal: Yellow LED, 1 Per Channel

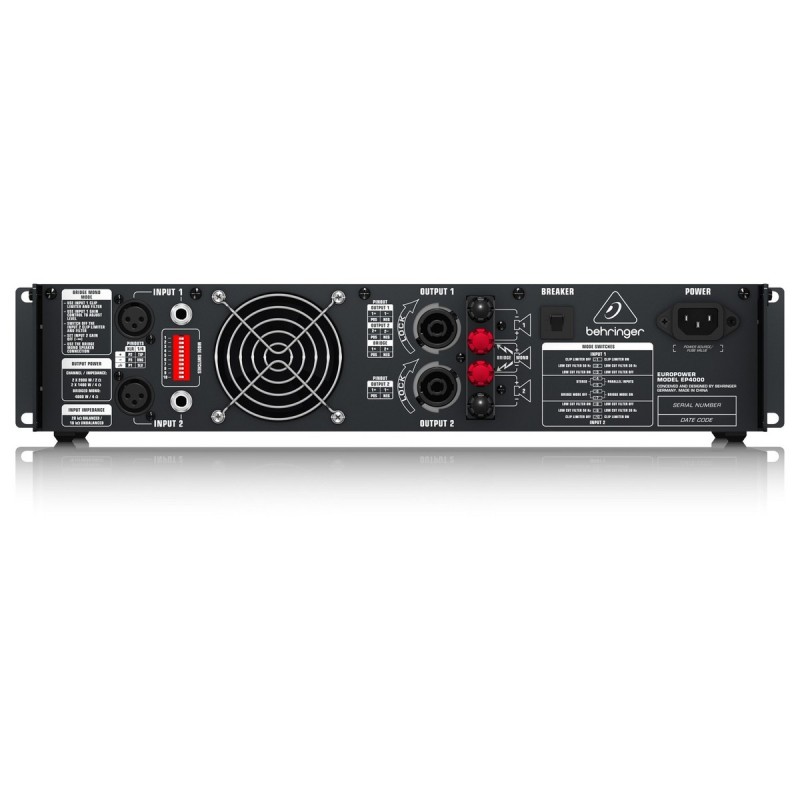

• Input Connectors:
  • XLR
  • 1/4'' TRS
• Output Connectors:
  • Binding Post
  • SpeakON
• Cooling: Continuously Variable Speed Fan, Back-to-Front Air Flow
• Open Circuit Type: Class H Complementary Linear Output
• Power Consumption: 2600W
• Mains Connector: Standard IEC
• Dimensions: 3.5'' x 19'' x 15.8'' / 88mm x 483mm x 402mm (H x W x D)
• Weight: 36.6lbs / 16.6kg
